Shanghai Weiye Optic Fiber Communication Equipment Co (www.weiye-ofc.com) delivers automated FTTH cable line output line systems for the United States market. Their turnkey FTTH Cable Production Line for High-Speed Fiber Optics integrates machines together with control systems. It manufactures drop cables, indoor/outdoor cables, and high-density units for telecom, data centers, as well as LANs.
This high-performance FTTH cable making machinery offers measurable business value. It enables higher throughput and consistent optical performance with low attenuation. It also aligns with IEC 60794 and ITU-T G.652D / G.657 standards. Customers gain reduced labor costs and material waste through automation. Full delivery services cover installation and operator training.
This FTTH cable production line package features fiber draw tower integration, a fiber secondary coating line, as well as a fiber coloring machine. It also covers SZ stranding line, fiber ribbon line, compact fiber unit assembly, cable sheathing line, armoring modules, as well as testing stations. Control together with power specs commonly rely on Siemens PLC using HMI, operating at 380 V AC ±10% together with modular power consumption up to roughly 55 kW depending on configuration.
Shanghai Weiye’s customer support model covers on-site commissioning by experienced engineers, remote monitoring, and rapid troubleshooting. It also provides lifetime technical support and operator training. Clients are commonly expected to coordinate engineer logistics as part of standard supplier practice when ordering from FTTH cable machine suppliers.
Key Takeaways
- FTTH production line systems meet growing U.S. demand for fiber-to-the-home deployments.
- Integrated turnkey packages from Shanghai Weiye combine automation, standards compliance, and operator training.
- Flexible modular systems use Siemens PLC + HMI and operate near 380 V AC with up to ~55 kW power profiles.
- Built-in modules cover drawing, coating, coloring, stranding, ribbon, sheathing, armoring, and testing.
- Advanced FTTH cable machinery reduces labor, waste, and improves optical consistency.
- Technical support includes on-site commissioning, remote diagnostics, and lifetime technical assistance.
FTTH Cable Production Line Technology Explained
The fiber optic cable production process for FTTH demands precise control at every stage. Manufacturers use integrated lines that combine drawing, coating, stranding, and sheathing. This method boosts yield and speeds up market entry. It meets the needs of both residential and enterprise deployments in the United States.
Below, we review the core components and technologies driving modern manufacturing. Each module must operate with precise timing and reliable feedback. The choice of equipment affects product quality, cost, and flexibility for various cable designs.
Core Components In Modern Fiber Optic Cable Manufacturing
Secondary coating lines apply dual-layer coatings, often 250 µm, using high-speed UV curing. Tight buffering and extrusion systems provide 600–900 µm jackets for indoor and drop cables.

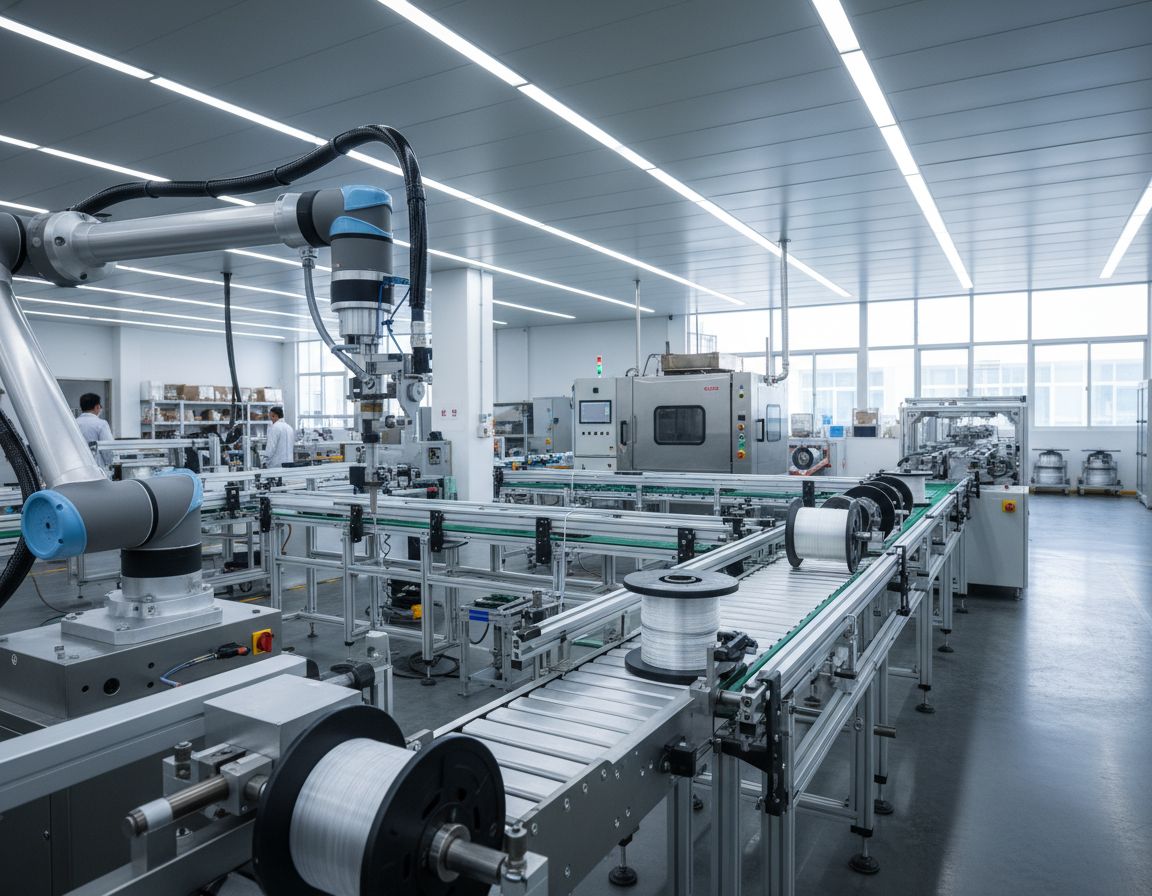

SZ stranding lines use servo-controlled pay-off together with take-up units to handle up to 24 fibers with accurate lay length. Fiber coloring machines employ multi-channel UV curing to mark fibers to industry color codes.
Sheathing and extrusion stations form PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs and UV dryers stabilize profiles before testing.
How Production Systems Evolved From Traditional To Advanced
Early plants used manual and semi-automatic modules. Lines were separate, with hand transfers and basic controls. Modern facilities now use PLC-controlled, synchronized systems with touchscreen HMIs.
Remote diagnostics and modular turnkey setups support rapid changeover between simplex, duplex, ribbon, and armored formats. This shift supports automated fiber optic cable production and reduces labor dependence.
Technologies Driving Innovation In The Industry
High-precision tension control, based on servo pay-off as well as take-up, keeps geometry stable during high-output runs. Multi-zone temperature control using Omron PID as well as precision heaters helps ensure consistent extrusion quality.
High-speed UV curing as well as water cooling speed up profile stabilization while reducing energy use. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, together with aging data.
| Process | Typical Unit | Key Benefit |
|---|---|---|
| Optical fiber drawing | Draw tower with automated tension feedback | Stable core diameter and reduced attenuation |
| Secondary coating | UV-curing dual-layer coaters | Consistent 250 µm coating for durability |
| Coloring | Fiber coloring unit with multiple channels | Precise identification for splicing and installation |
| SZ stranding | SZ stranding line, servo-controlled (up to 24 fibers) | Stable lay length for ribbon and loose tube designs |
| Jacket extrusion & sheathing | Efficient extruders with multi-zone heaters | PE/PVC/LSZH jackets with tight dimensional control |
| Armoring | Armoring units for steel tape or wire | Improved outdoor mechanical protection |
| Profile cooling & curing | Water troughs and UV dryers | Fast profile stabilization and reduced defects |
| Inline testing | Real-time attenuation and geometry measurement | Real-time quality control and compliance reporting |
Compliance with IEC 60794 and ITU-T G.652D/G.657 variants is standard. Manufacturers typically certify to ISO 9001, CE, and RoHS. These credentials support diverse applications, from FTTH drop cable production to armored outdoor runs and data center high-density solutions.
Choosing cutting-edge fiber optic production equipment and modern manufacturing equipment helps firms meet tight tolerances. That decision enables efficient automated fiber optic cable production and positions companies to deliver on scale and quality.
Essential Equipment In Fiber Secondary Coating Line Operations
This secondary coating stage is critical, giving drawn optical fiber its final diameter and mechanical strength. The line prepares the fiber for stranding together with cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, and surface quality. This protects the glass during handling.
Producers aiming for high-yield, high-speed fiber optic cable production must match material, tension, and curing systems to process requirements.
High-speed secondary coating processes rely on synchronized pay-off, coating heads, and UV ovens. Modern systems achieve high line output rates while minimizing excess loss. Precise tension control at pay-off together with winder stages prevents microbends and ensures consistent coating thickness across long runs.
Single together with dual layer coating applications serve different market needs. Single-layer setups provide basic mechanical protection together with a simple optical fiber cable manufacturing machine footprint. Dual-layer lines combine a harder inner layer using a softer outer layer to improve microbend resistance together with stripability. That helps when fibers are prepared for connectorization.
Temperature control and curing systems are critical to final fiber performance. Multi-zone heaters and Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens and water trough cooling stabilize the coating profile and reduce variation in excess loss; targets for high-quality single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.
Key components from trusted suppliers improve uptime as well as precision in an optical fiber cable line output machine. Extruders such as 50×25 models, screws together with barrels from Jinhu, and bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, together with PLC/HMI platforms from Siemens or Omron offer robust control as well as monitoring for continuous runs.
Operational parameters guide preventive maintenance and process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation and curing speeds are adjusted to material type and coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable and supports reliable high-speed fiber optic cable production.
Fiber Draw Tower And Optical Preform Handling
This fiber draw tower is the core of optical fiber drawing. This line softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand featuring precise diameter control. That process step sets the refractive-index profile together with attenuation targets for downstream processes.
Process control on the tower uses real-time diameter feedback and tension management. That prevents microbends. Cooling zones and closed-loop systems keep geometry stable during the optical fiber cable production process. Modern towers log metrics for traceability and rapid troubleshooting.
Output consistency supports single-mode fibers such as ITU-T G.652D and bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.
Integration with secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment and tension as the fiber enters coating, coloring, or ribbon count stations. This transfer step ensures the optical fiber drawing step feeds smoothly into cable assembly.
Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, and geometric tolerances. These integrated features help manufacturers scale toward high-speed fiber optic cable production while maintaining ISO-level quality checks.
| Key Feature | Main Purpose | Typical Target |
|---|---|---|
| Furnace with multiple zones | Uniform preform heating for stable glass viscosity | Stable draw speed and refractive profile |
| Real-time diameter control | Control core/cladding geometry while reducing attenuation | Tolerance ±0.5 μm |
| Managed tension and cooling | Prevent microbends and control fiber strength | Specified tension per fiber type |
| Automated pay-off integration | Reliable handoff to coating and coloring stages | Synchronized feed rates for zero-slip transfer |
| Inline test stations | Validate attenuation, tensile strength, geometry | Single-mode loss target of ≤0.2 dB/km after coating |
Advanced SZ Stranding Line Technology For Cable Assembly
The SZ stranding method creates alternating-direction lays that cut axial stiffness and boost flexibility. As a result, it is ideal for drop cables, building drop assemblies, and any application that needs a flexible core. Manufacturers moving toward automated fiber optic cable manufacturing use SZ approaches to meet tight bend and axial tolerance specs.
Precision in the stranding stage protects optical performance. Modern precision stranding equipment relies on servo-driven carriers, rotors, together with modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control and allow quick reconfiguration for different cable types.
Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, together with haul-off units maintain constant linear speed and target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 together with 20 N.
Integration using a downstream fiber cable sheathing line streamlines production as well as cuts handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs using stranding through a Siemens PLC. Cooling troughs together with UV dryers stabilize the jacket profile right after extrusion to prevent ovality and reduce mechanical stress.
Optional reinforcement and armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire with adjustable tension to meet specific mechanical ratings.
Built-in output quality control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, and optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows and cut rework.
The combination of a robust sz stranding line, high-end precision stranding equipment, and a synchronized fiber cable sheathing line provides a scalable solution for manufacturers. This blend raises throughput while protecting optical integrity and mechanical performance in finished cables.
Fiber Coloring Machines And Identification Systems
Coloring and identification are critical in fiber optic cable production. Accurate color application minimizes splicing errors and accelerates field work. Modern equipment combines fast coloring with inline inspection, ensuring high throughput and low defect rates.
Today’s high-speed coloring technology supports multiple channels and quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning with secondary coating lines. UV curing at speeds over 1500 m/min ensures color and adhesion stability for both ribbon and counted fibers.
The next sections review standards and coding prevalent in telecom networks.
Color coding adheres to international telecom standards for 12-color cycles and ribbon schemes. This compliance aids technicians in installation and troubleshooting. Consistent coding significantly reduces field faults and accelerates network deployment.
Quality control integrates modern fiber identification systems into line output lines. In-line cameras, spectrometers, as well as sensors detect color discrepancies, poor saturation, as well as coating flaws. The PLC/HMI interface alerts to issues and can pause the line for correction, safeguarding downstream processes.
Machine specifications are vital for uninterrupted runs and material compatibility. Leading equipment accepts UV-curable pigments and inks, compatible with common coatings and extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.
Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye and other established vendors offer customizable channels, remote diagnostics, and onsite training. That support model reduces ramp-up time and enhances the reliability of fiber optic cable production equipment.
Specialized Solutions For Fiber In Metal Tube Production
Metal tube and metal-armored cable assemblies provide robust protection for fiber lines. They are ideal for direct-buried and industrial applications. The controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.
Processes depend on precision filling and centering units. These modules, in conjunction with fiber optic cable manufacturing equipment, ensure concentric placement and controlled tension during insertion.
Armoring steps involve the rely on of steel tape or wire units featuring adjustable tension and wrapping geometry. That approach benefits armored fiber cable production by preventing compression of fiber elements. This system additionally keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.
Coupling armoring featuring downstream sheathing and extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable manufacturing machine must handle pay-off reels sized for reinforcement together with align using sheathing tolerances.
Quality checks include crush, tensile, together with aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing supports long-term reliability in field conditions.
Turnkey solutions from established manufacturers integrate metal tube handling with SZ stranding together with sheathing lines. These solutions include operator training together with maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.
Buyers should consider compatibility with armored fiber cable production modules, ease of changeover, and service support for field upgrades. These factors reduce downtime and protect investment in an optical fiber cable production machine.
Fiber Ribbon Line And Compact Fiber Unit Production
Modern data networks require efficient assemblies that pack more fibers into less space. Manufacturers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. This method uses parallel processes and precise geometry to meet the needs of MPO trunking and backbone cabling.
Advanced equipment ensures accuracy and speed in production. A fiber ribbon line typically integrates automated alignment, epoxy bonding, precise curing, and shear/stacking modules. In-line attenuation and geometry testing reduce rework, maintaining high yields.
Compact fiber unit production focuses on tight tolerances and material choice. Extrusion and buffering create compact fiber unit constructions with typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, and LSZH for durability and flame performance.
High-density cable solutions aim to enhance rack and tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter and simplify routing. They are compatible with MPO trunking and high-count backbone systems.
Production controls together with speeds are critical for throughput. Modern lines can reach up to 800 m/min, depending on configuration. PLC and HMI touch-screen control enable quick parameter changes as well as synchronization across multiple lines.
Quality together with customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, and turnkey integration with sheathing together with testing stations support bespoke fast-cycle fiber cable production line requirements.
| Production Feature | Fiber Ribbon System | Compact Fiber Unit | Benefit for Data Centers |
|---|---|---|---|
| Typical operating speed | Up to roughly 800 m/min | Typically up to 600–800 m/min | More output for large deployment projects |
| Core processes | Alignment automation, epoxy bonding, and curing | Extrusion, buffering, tight-tolerance winding | Consistent geometry and lower insertion loss |
| Primary materials | Specialty tapes and bonding resins | PBT, PP, plus LSZH buffer and jacket materials | Long service life with compliance benefits |
| Quality testing | Real-time attenuation and geometry inspection | Tension monitoring and dimensional control | Fewer field failures and quicker deployment |
| Integration | Sheathing integration and splice-ready stacking | Modular units for high-density cable solutions | Simplified MPO trunking and backbone construction |
Optimizing High-Speed Internet Cable Production
Efficient high-speed fiber optic cable production relies on precise line setup and strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, and tension systems. This ensures optimal output for flat, round, simplex, and duplex FTTH profiles.
Cabling Systems For FTTH Applications
FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- together with 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.
Extruder models, such as a 50×25, control jacket speeds between 100 and 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.
Fiber Pulling Process Quality Assurance
Servo-controlled pay-off and take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, together with crush and aging cycles. Such tests verify performance.
Key control components include Siemens PLCs and Omron PID controllers. Motors from Dongguan Motor and inverters from Shenzhen Inovance ensure stable operation and easier maintenance.
Meeting Optical Fiber Drawing Industry Standards
A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D as well as G.657 standards. This goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-consistency single-mode fiber.
Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, together with local after-sales support. Top FTTH cable line output line manufacturers deliver turnkey layouts, remote monitoring, as well as operator training. Such support lowers ramp-up time for US customers.
Conclusion
Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, and ribbon units. It also includes sheathing, armoring, and automated testing for consistent high-speed fiber production. A complete fiber optic cable production line is designed for FTTH and data center markets. It enhances throughput, keeps losses low, and maintains tight tolerances.
For U.S. manufacturers and system integrators, partnering with reputable suppliers is key. They should offer turnkey systems with Siemens or Omron-based controls. That includes on-site commissioning, remote diagnostics, as well as lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co offer integrated solutions. Such solutions simplify automated fiber optic cable manufacturing as well as reduce time to production.
Technically, ensure line configurations adhere to IEC 60794 together with ITU-T G.652D/G.657 standards. Verify tension and curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable manufacturing line, first evaluate required cable types. Collect product drawings as well as standards, request detailed equipment specs as well as turnkey proposals, together with schedule engineer commissioning and operator training.
